Publié le 27 février 2025

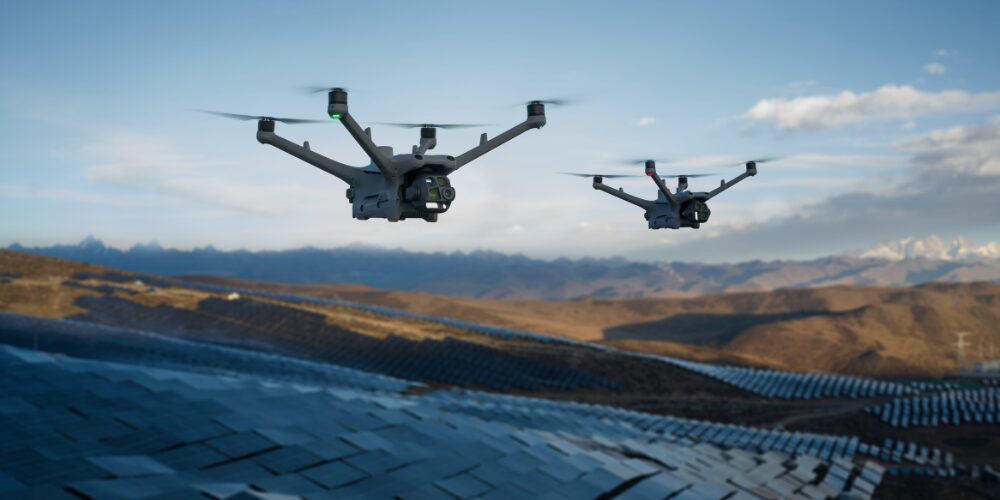

The new Matrice 4D and Matrice 4TD drones, specifically designed for the DJI Dock 3, deliver enhanced flight performance and protection. They are compatible with the DJI RC Plus 2 Enterprise for standalone autonomous operation.

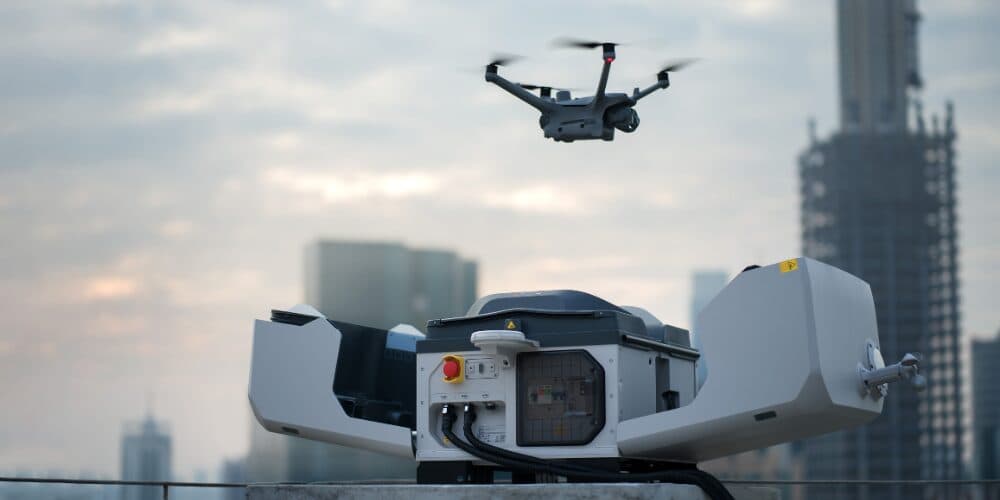

Designed for 24/7 remote operations with the high-performance Matrice 4D and Matrice 4TD drones, Dock 3 introduces an unprecedented vehicle-mounted mobile deployment capability while easily adapting to various environments.
It promises improved operational efficiency and reduced labor costs thanks to smart features integrated into DJI FlightHub 2.
The Matrice 4D and Matrice 4TD can take off and land in winds of up to 12 m/s. The design of the DJI Dock 3 protects its internal systems from external conditions thanks to an IP56 rating (IP55 for the drones).
Equipped with low-noise and anti-icing propellers, the Matrice 4D and 4TD drones ensure stable flight even in freezing rain conditions.
The DJI Dock 3 can be deployed in both fixed and mobile configurations. For fixed deployments, the next-generation D-RTK 3 relay improves signal quality and extends the maximum transmission range to 25 km. For the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during emergency operations and long-range inspections.
Optimized for this use case, the DJI Dock 3 has undergone vehicle vibration testing and includes features such as horizontal calibration and cloud-based dock location calibration.
During mobile operations, personnel can remotely define the dock’s location and assign missions via DJI FlightHub 2.
DJI Dock 3 review : the drone system that automates inspections and surveillance
This content is hosted by YouTube. By displaying it, you accept its terms of use.

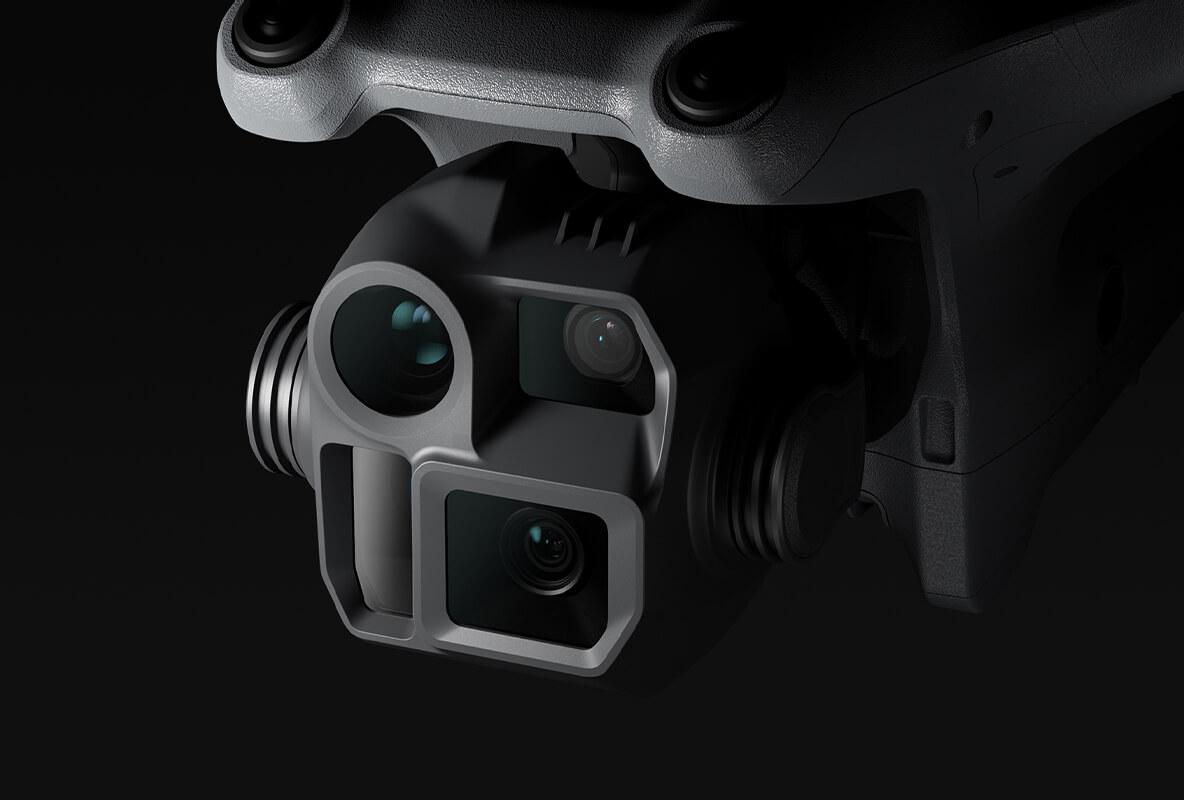

Ideal for high-precision professional mapping and detailed surface inspections, it integrates a wide-angle camera with a 20 MP 4/3″ CMOS sensor, a medium telephoto camera, a telephoto camera, and a laser rangefinder.

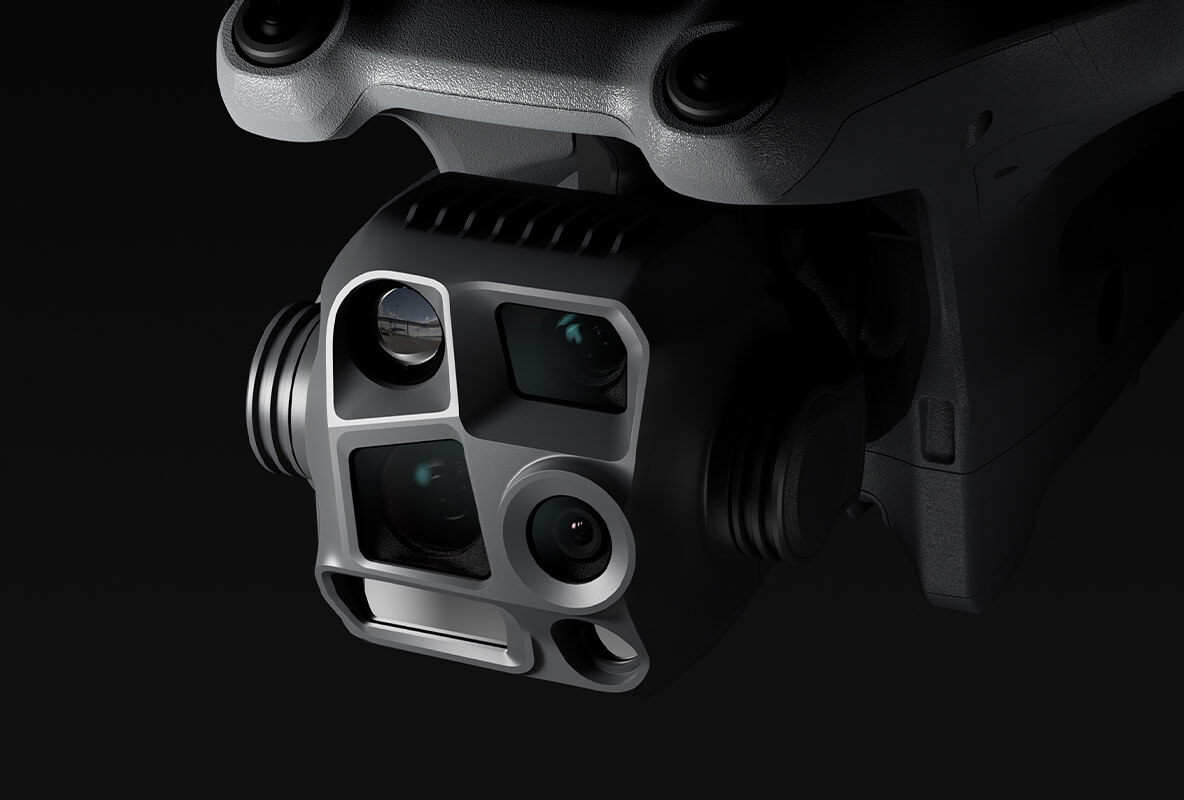

Ideal for infrastructure inspections, emergency response, and public safety operations, it is equipped with an infrared thermal camera and a new PIR auxiliary light.
Wide-Angle Camera : 1/1.3-inch CMOS, 48 MP effective pixels, f/1.7, 24 mm equivalent focal length
Medium Telephoto Camera : 1/1.3-inch CMOS, 48 MP effective pixels, f/2.8, 70 mm equivalent focal length
Telephoto Camera : 1/1.5-inch CMOS, 48 MP effective pixels, f/2.8, 168 mm equivalent focal length
Laser Rangefinder : Measuring range up to 1,800 m (1 Hz), ranging accuracy of ± (0.2 + 0.0015 × D) meters
The Matrice 4D and Matrice 4TD offer an impressive flight time of 47 minutes at a speed of 15 m/s (up to 54 minutes in forward flight) and are designed to withstand harsh conditions with an IP55 rating.
The optional obstacle detection module combines rotating LiDAR and millimeter-wave radar technologies to enable wire-level obstacle avoidance (down to 12 mm) at speeds of up to 15 m/s.
The Matrice 4D series features four high-resolution fisheye lenses for low-light conditions, significantly improving visual positioning and obstacle detection. The Matrice 4TD also includes an infrared-cut filter for black-and-white night vision, as well as a PIR auxiliary light capable of reaching distances of up to 100 m.
The Matrice 4D series excels in high-precision mapping, offering a new 5-direction oblique photography mode and 3-direction orthophoto capture.
The Matrice 4D series can operate with the DJI RC Plus 2 Enterprise for standalone use while also featuring an innovative onboard relay function.
The new smart change detection feature enables efficient periodic analysis of changes within an area, supporting operators in environmental protection, natural disaster response, and crack detection.
The DJI Dock 3, combined with the Matrice 4D and Matrice 4TD drones, represents a major advancement in autonomous drone operations. Its versatility, robustness, and intelligent features make it an essential tool for professionals seeking to optimize their aerial operations.
Whether for inspections, surveillance, mapping, or emergency response, the DJI Dock 3 provides a complete and high-performance solution to meet the most demanding operational needs.
